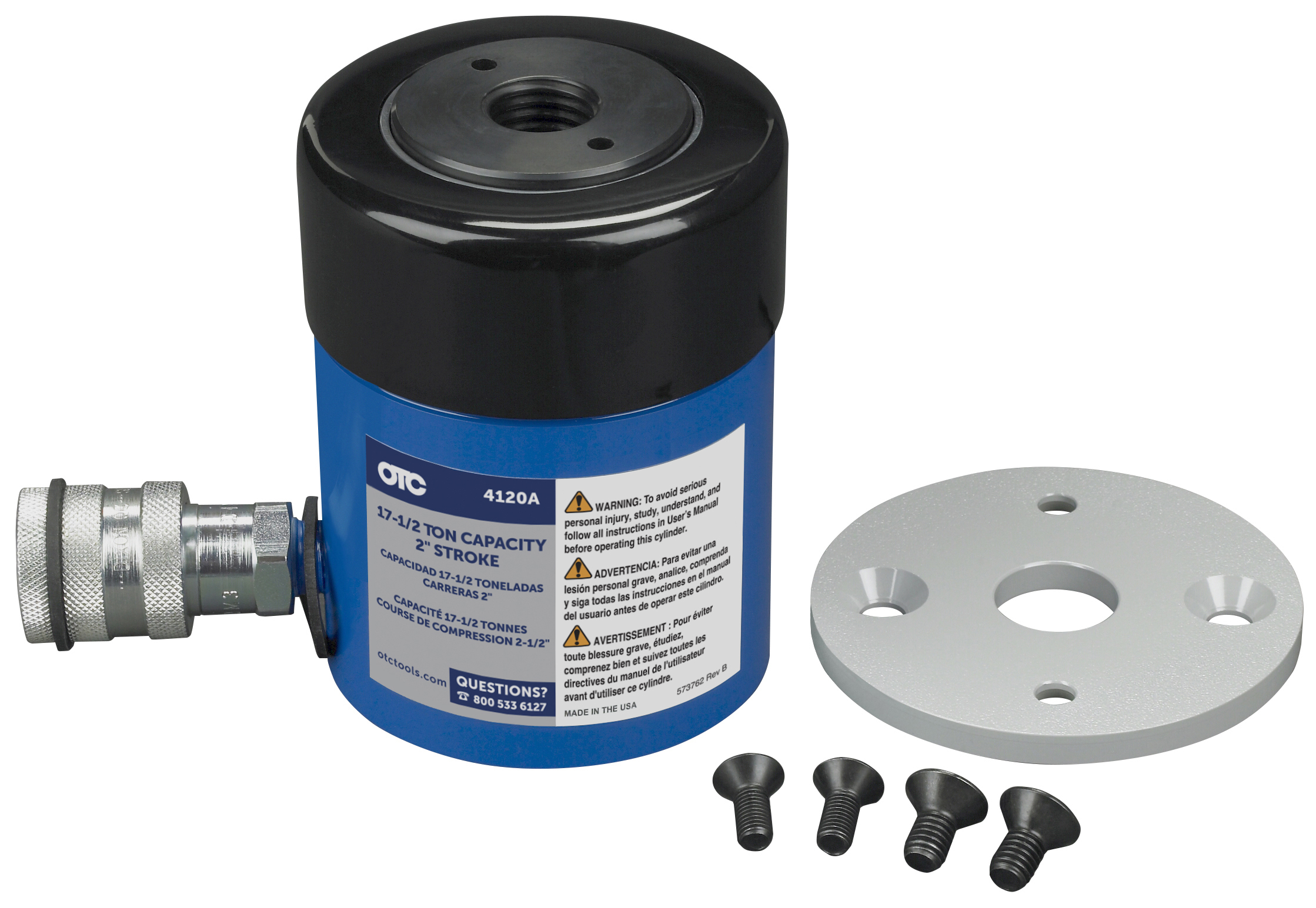

17-1/2 Ton Hollow Center Hydraulic Ram (w/ adapter)

Title:
17-1/2 Ton Hollow Center Hydraulic Ram (w/ adapter)

Center-hole rams are ideal for jobs that require a great deal of force and a relatively short stroke. Compared to the force it develops, the ram is lightweight, compact, and easy to handle, permitting its use in confined quarters. Center-hole feature allows extending jacking screws, cables, puller screws, and more to be insterted through the ram.

  • Engineered for increased strength and durability and meets the ASME B30.1 standards
  • For use with Grip-O-Matic pullers, push-pullers, and shop presses

The Tabs

Overview
SKU:
4120A
Categories:
Shop Equipment
Hydraulic Pumps and Rams
Includes:
Cylinder
Operating Instructions
Warranty Statement & Service Center List
Parts List
Adapter Plate
Supersedes P/N's:
4120
Specs
Product Specs:
Capacity in Tons | 17-1/2
Stroke | 2"
Height Collapsed | 5-1/2"
Height Extended | 7-1/2"
Adapter Plate | Yes, included
Effective Ram Area (sq. in.) | 3-1/2
Oil Capacity (cu. in.) | 7.01
Product Dimensions:
9 × 9 × 6.25 in
Product Weight:
18.8 lb
Shipping Weight:
18.8 lb
