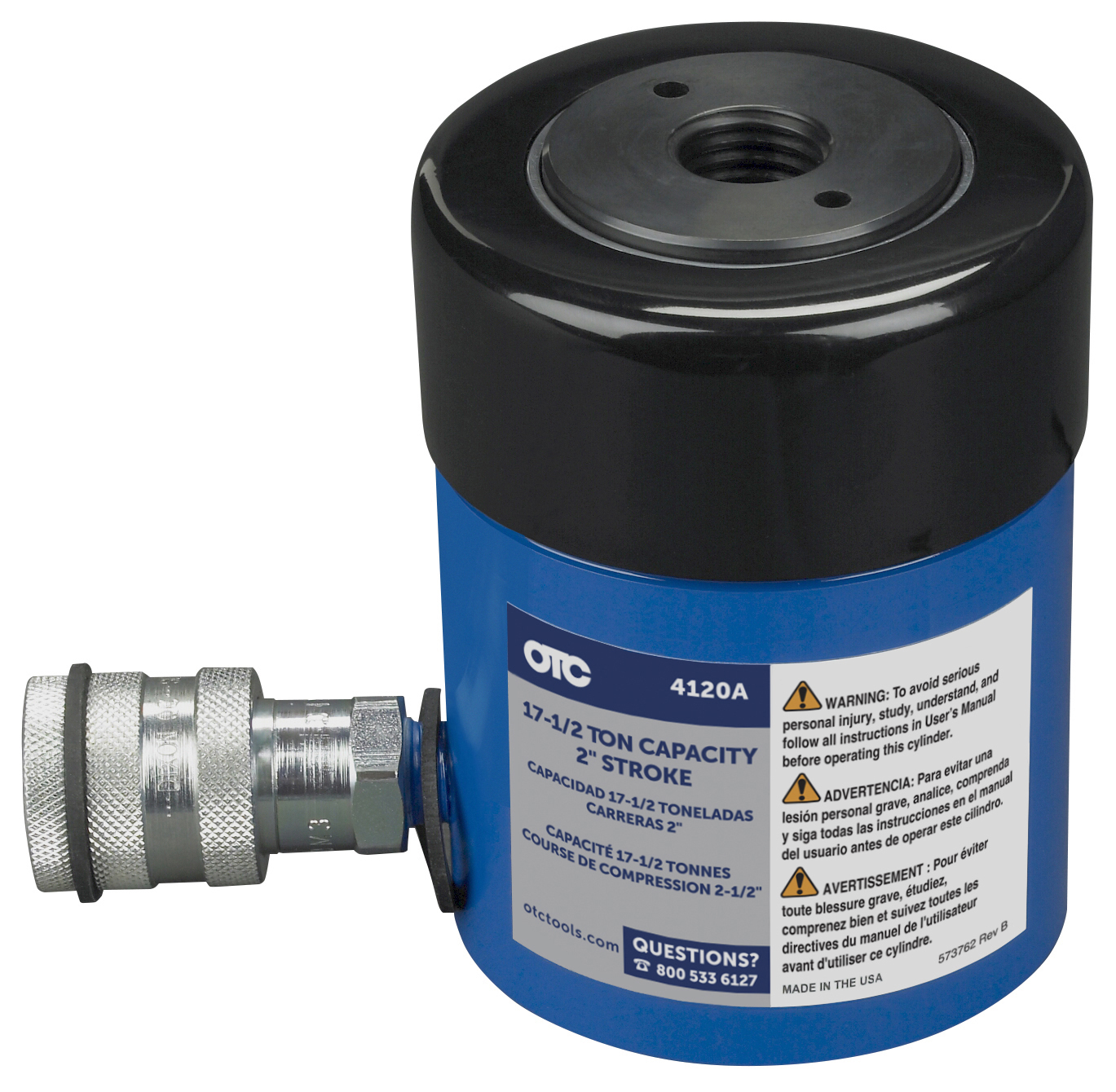

17-1/2 Ton Hollow Center Hydraulic Ram (w/o adapter)

Title:
17-1/2 Ton Hollow Center Hydraulic Ram (w/o adapter)

Center-hole rams are ideal for jobs that require a great deal of force and a relatively short stroke. Compared to the force it develops, the ram is lightweight, compact, and easy to handle, permitting its use in confined quarters. Center-hole feature allows extending jacking screws, cables, puller screws, and more to be insterted through the ram.

  • Engineered for increased strength and durability and meets the ASME B30.1 standards
  • For use with Grip-O-Matic pullers, push-pullers, and shop presses

The Tabs

Overview
This product can expose you to chemicals including Lead and lead compounds, which is known to the State of California to cause cancer, and Lead and lead compounds, which is known to the State of California to cause birth defects or other reproductive harm. For more information for to www.P65Warnings.ca.gov.
SKU:
4120A-MA
Categories:
Shop Equipment
Hydraulic Pumps and Rams
Includes:
Cylinder
Operating Instructions
Parts List
Warranty Statement & Service Center List
Supersedes P/N's:
4120
Related/Accessory Products:
30 Ton Hollow Center Hydraulic Ram (w/o Adapter)
50 Ton Hollow Center Hydraulic Ram (w/o adapter)
Specs
Product Specs:
Capacity in Tons | 17-1/2
Stroke | 2"
Height Collapsed | 5-1/2"
Height Extended | 7-1/2"
Adapter Plate | Not included
Effective Ram Area (sq. in.) | 3-1/2
Oil Capacity (cu. in.) | 7.01
Product Dimensions:
6.6 × 4 × 5.46 in
Product Weight:
17.63 lb
Shipping Weight:
17.6 lb
