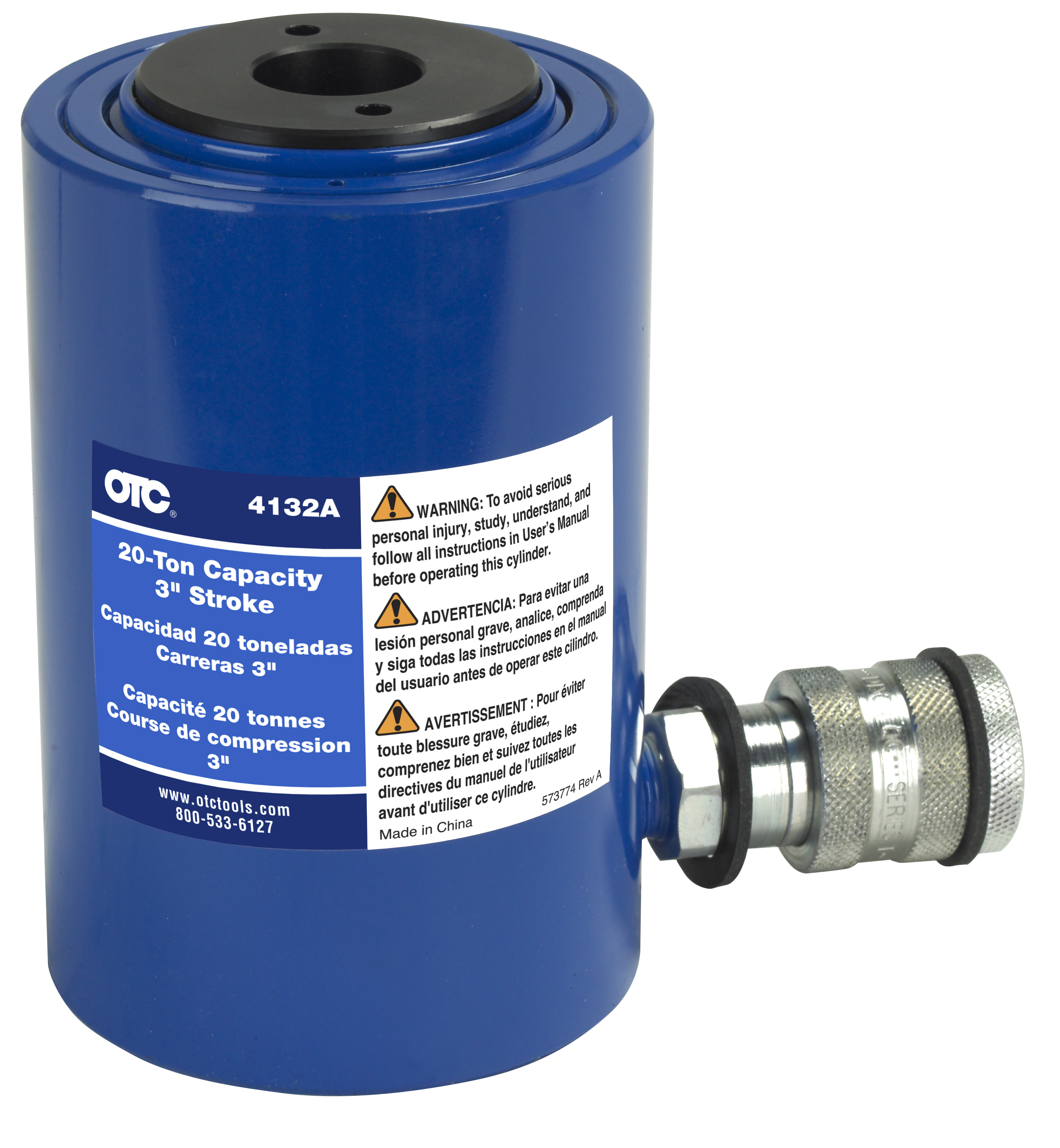

20-Ton Hollow-Center 3" Cylinder

Title:
20-Ton Hollow-Center 3" Cylinder

The updated 20 Ton hydraulic Hollow-Center Cylinder replaces the 4132 Hydraulic Twin Ram and has been engineered for increased strength and durability and meets the ASME B30.1 standards. A center-hole design is ideal for push/pull applications while allowing for the extension of cables, screws, or wires through the cylinder. Tapped base mounting holes allow for easy installation in fixed applications.  Made in the USA.

The Tabs

Overview
SKU:
4132A
Categories:
Shop Equipment
Hydraulic Pumps and Rams
Includes:
Cylinder
Operating Instructions
Parts List
Warranty Statement & Service Center List
Supersedes P/N's:
4132
Specs
Product Specs:
Retracted Height (in.) | 6.0
Extended Height (in.) | 9.21
Outside Dia. (in.) | 4.0
Piston Rod Dia. (in.) | 2.0
Center Hole Dia. (in.) | 1.02
Base Mounting Hole Circle Diameter (in.) | 3.25
Insert Hole Size (in.) | 1.02
Insert Outside Thread Size (in.) | 2.250-12 UN-2A
Oil Capacity (cu. in.) | 11.76
Int. Press. at Cap. (psi) | 10,000
Base to Inlet Port (in.) | 1.00
Product Weight (lbs.) | 18.54
Features:
Spring return - Cylinder retracts quickly in any orientation
Meets ASME B30.1 standards - Reduces likelihood of failure of product during use
Product Dimensions:
6.63 × 4 × 6 in
Product Weight:
18.54 lb
Shipping Weight:
19.04 lb
