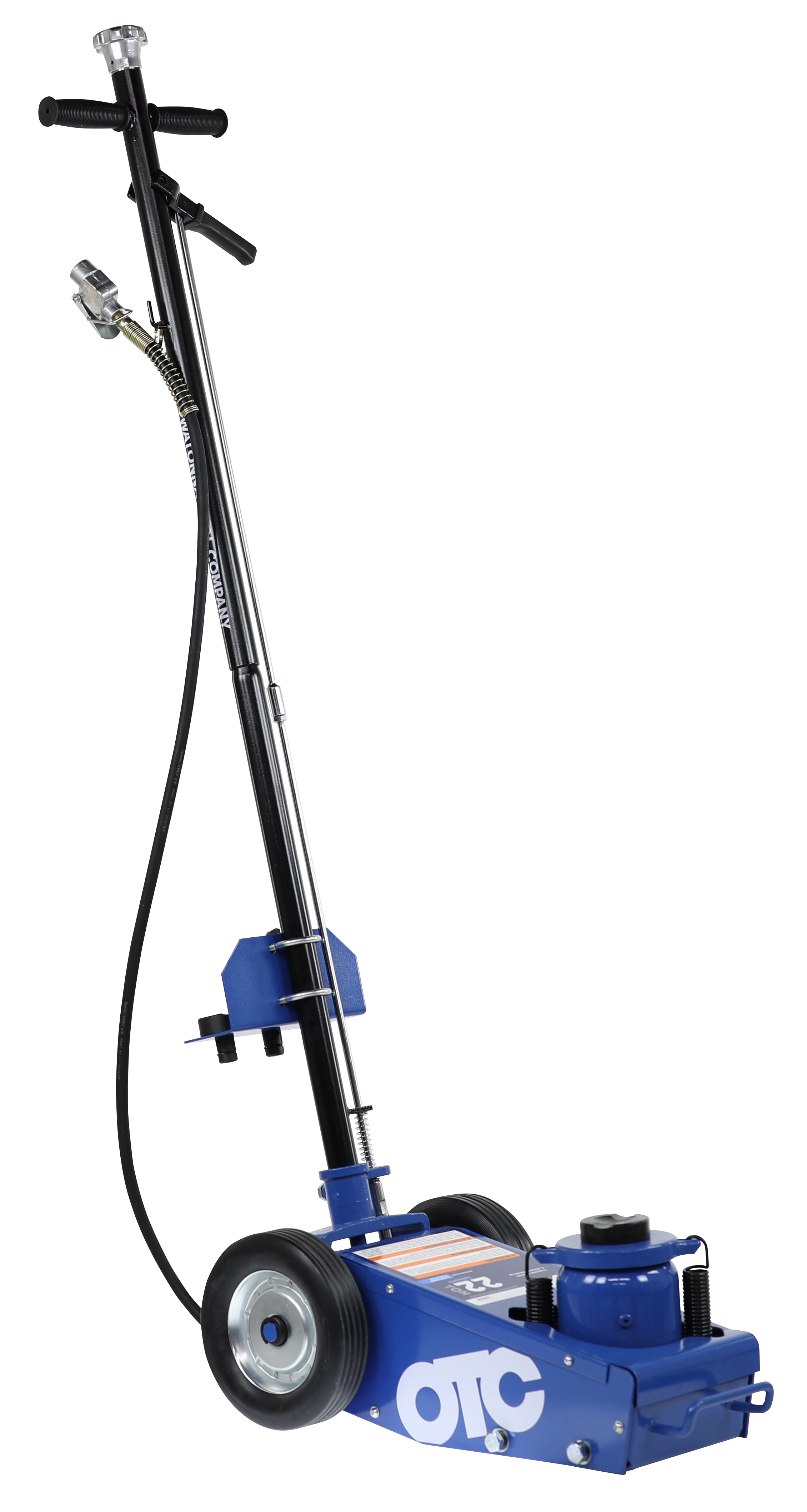

22 Ton Under Axle Jack

Title:
22 Ton Under Axle Jack

Bring the versatility of air-assist operation to your shop’s lifting tasks. Self-retracting, spring return feature with long 49-1/2" T-handle lets you easily position jack under vehicles with long overhangs. One pull of the handle activates the self-retracting 22-ton capacity ram without having to crawl underneath the vehicle. Large rubber-tired steel wheels for maneuverability and movement on most types of terrain. Three included saddle attachments for multiple height adjustments based on vehicle being lifted.

4-1/2" Cylinder stroke, 4-1/2"; 4-1/4" extended screw length.

Ideal size for safely lifting heavy duty vehicles.

Specifications:

  • 22-ton capacity
  • Air pressure: 90 - 145 PSI
  • Lifting range: 8.27" to 20-2/3" using longest saddle
  • Reach: 69.87"
  • Saddle: 3" dia., round with center notch. Includes 3 saddle lengths:
    • Max height using ¾” saddle: 17-3/4”
    • Max height using 1-15/16” saddle: 18-15/16”
    • Max height using 3-7/8” saddle: 20-2/3”
  • Frame height: 8.27"
  • Handle length: 47.24" T handle with lowering lever and air-chuck hook
  • Footprint: 22.63" x 11.73"
  • Wheels: 2 fixed; 7.88" rubberized steel

Meets all 5 ASME PASE-2019 safety standards for service jacks

Limited Lifetime Warranty

The Tabs

Overview
This product can expose you to chemicals including Titanium dioxide (airborne, unbound particles of respirable size), which is known to the State of California to cause cancer, and Titanium dioxide (airborne, unbound particles of respirable size), which is known to the State of California to cause birth defects or other reproductive harm. For more information for to www.P65Warnings.ca.gov.
SKU:
UA22
Categories:
Shop Equipment
Service Jacks
Under Axle
Includes:
22 Ton Under Axle Service Jack
49-1/2" T Handle with position control rod and lever
3 Attachments for adjusting height application
OTC Owners Manual for service jacks with training (operating) instruction
Supersedes P/N's:
1788B
Specs
Product Specs:
Capacity | 22-ton
Air Pressure | 90 - 145 PSI
Lifting range | 8.27" to 20-2/3” using longest saddle
Reach | 69.87"
Saddle | 3" dia., round with center notch. Includes 3 saddle lengths: 3/4"; 1-15/16"; 3-7/8"
Max height using ¾” saddle | 17-3/4”
Max height using 1-15/16” saddle | 18-15/16”
Max height using 3-7/8” saddle | 20-2/3”
Frame height | 8.27"
Handle length | 47.24" T handle with lowering lever and air-chuck hook
Footprint | 22.63" x 11.73"
Wheels | 2 fixed; 7.88" rubberized steel
Features:
Heavy-duty air and hydraulic performance for garages, equipment dealers, commercial service and more
Welded hydraulic pump and cylinder construction provides increased strength and leak prevention
Chrome plated ram for additional rust resistance
Wiper seals protect hydraulic system from contaminants
3 Position handle makes it easy to position under vehicles with low overhangs
Wide rugged base adds stability and strength
Large rear wheels provide easy positioning and portability
Dependable double spring return lowers piston ram quickly with no load
Multi-lingual OTC Owners Manual for service jacks with training (operating) instruction
Product Dimensions:
22.6 × 11.7 × 8.27 in
Product Weight:
100 lb
Shipping Weight:
110 lb
