2,500 lb. Air/Hydraulic Powertrain Lift

Title:
2,500 lb. Air/Hydraulic Powertrain Lift

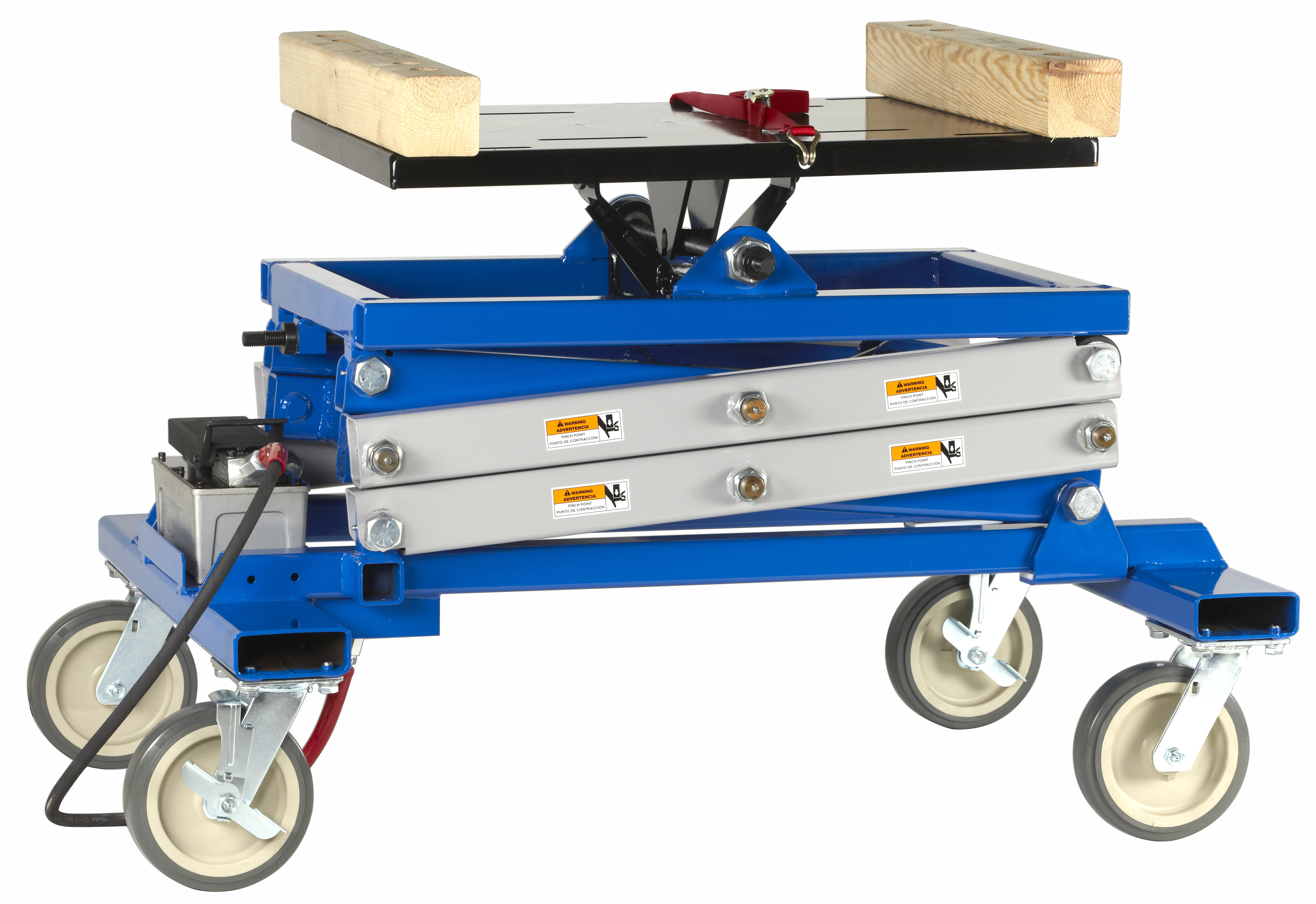

The OTC 1595A  2,500 lb. Air/Hydraulic Powertrain Lift will handle heavy engine and transmission assemblies, gas tanks, drive axle assemblies, electric vehicle batteries, and more.

  • Scissors-type design allows access to all four sides of a component.
  • Powered by an air over hydraulic foot pump for precise lifting and lowering control
  • Independent adjusting screws tilt the table 15° side-to-side, or fore-and-aft, and ensure maximum stability of the table in any position.
  • Large, 8" swivel casters accommodate heavy loads.
  • Meets ASME PASE standards



The Tabs

Overview
SKU:
1595A
Categories:
Shop Equipment
Power Train Lifts
Includes:
Complete lift assembly
Specs
Product Specs:
Capacity | 2,500 lbs
Table size | 20" x 32"
Minimum Height | 29"
Maximum Height | 80"
Footprint | 31" Wide x 50" Long
Features:
Scissor type design allows access to all four sides of a component.
Two independent adjusting screws tilt the table +/- 15 degrees side-to-side.
Air/Hydraulic operation, foot control pump with hose allows movement around lift.
8” swivel casters provide enhanced mobility under heavy loads.
Meets ASME PASE standards.
Product Dimensions:
39 × 34 × 54 in
Product Weight:
685 lb
Shipping Weight:
685 lb
Downloads
Product Documents:
PDF icon Powertrain lifts, adapters and accessories brochure
PDF icon Parts List and Operating Instructions - English (Document # SP04506662)
PDF icon Parts List and Operating Instructions - Spanish (Document # SP04506662)
PDF icon Parts List and Operating Instructions - French (Document # SP04506662)
