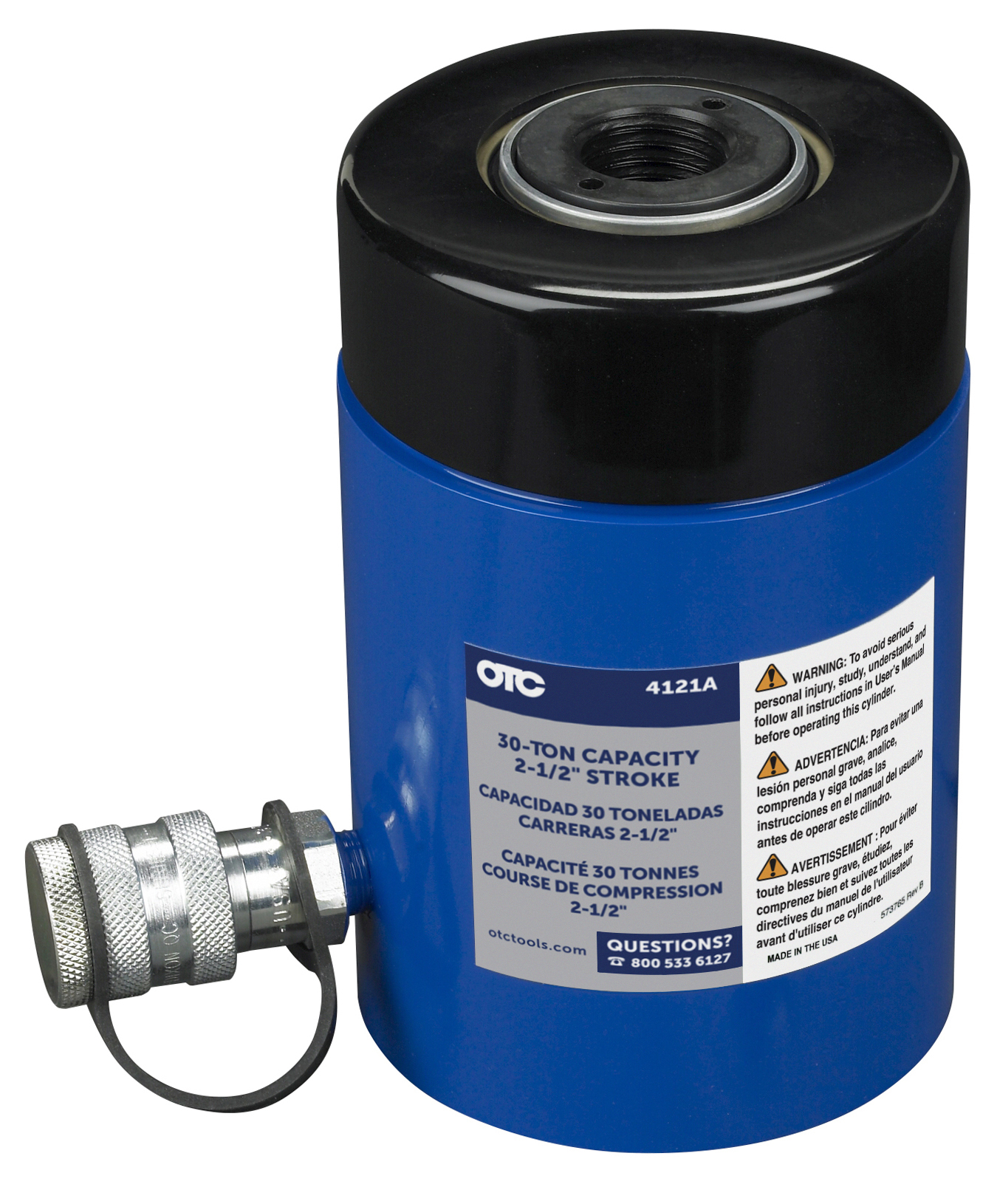

30 Ton Hollow Center Hydraulic Ram (w/o Adapter)

Title:
30 Ton Hollow Center Hydraulic Ram (w/o Adapter)

Center-hole rams are ideal for jobs that require a great deal of force and a relatively short stroke. Compared to the force it develops, the ram is lightweight, compact, and easy to handle, permitting its use in confined quarters. Center-hole feature allows extending jacking screws, cables, puller screws, and more to be insterted through the ram.

  • Engineered for increased strength and durability and meets the ASME B30.1 standards
  • For use with Grip-O-Matic pullers, push-pullers, and shop presses

The Tabs

Overview
SKU:
4121A-MA
Categories:
Shop Equipment
Hydraulic Pumps and Rams
Includes:
Cylinder
Operating Instructions
Parts List
Warranty Statement & Service Center List
Supersedes P/N's:
4121
Related/Accessory Products:
17-1/2 Ton Hollow Center Hydraulic Ram (w/o adapter)
50 Ton Hollow Center Hydraulic Ram (w/o adapter)
Specs
Product Specs:
Capacity in Tons | 30
Stroke | 2-1/2"
Height Collapsed | 7-3/4"
Height Extended | 10-1/4"
Adapter Plate | Not included
Effective Ram Area (sq. in.) | 6-1/8
Oil Capacity (cu. in.) | 15.45
Product Dimensions:
7.6 × 4.98 × 7.8 in
Product Weight:
36 lb
Shipping Weight:
35.8 lb
