5 Ton Service Jack

Title:

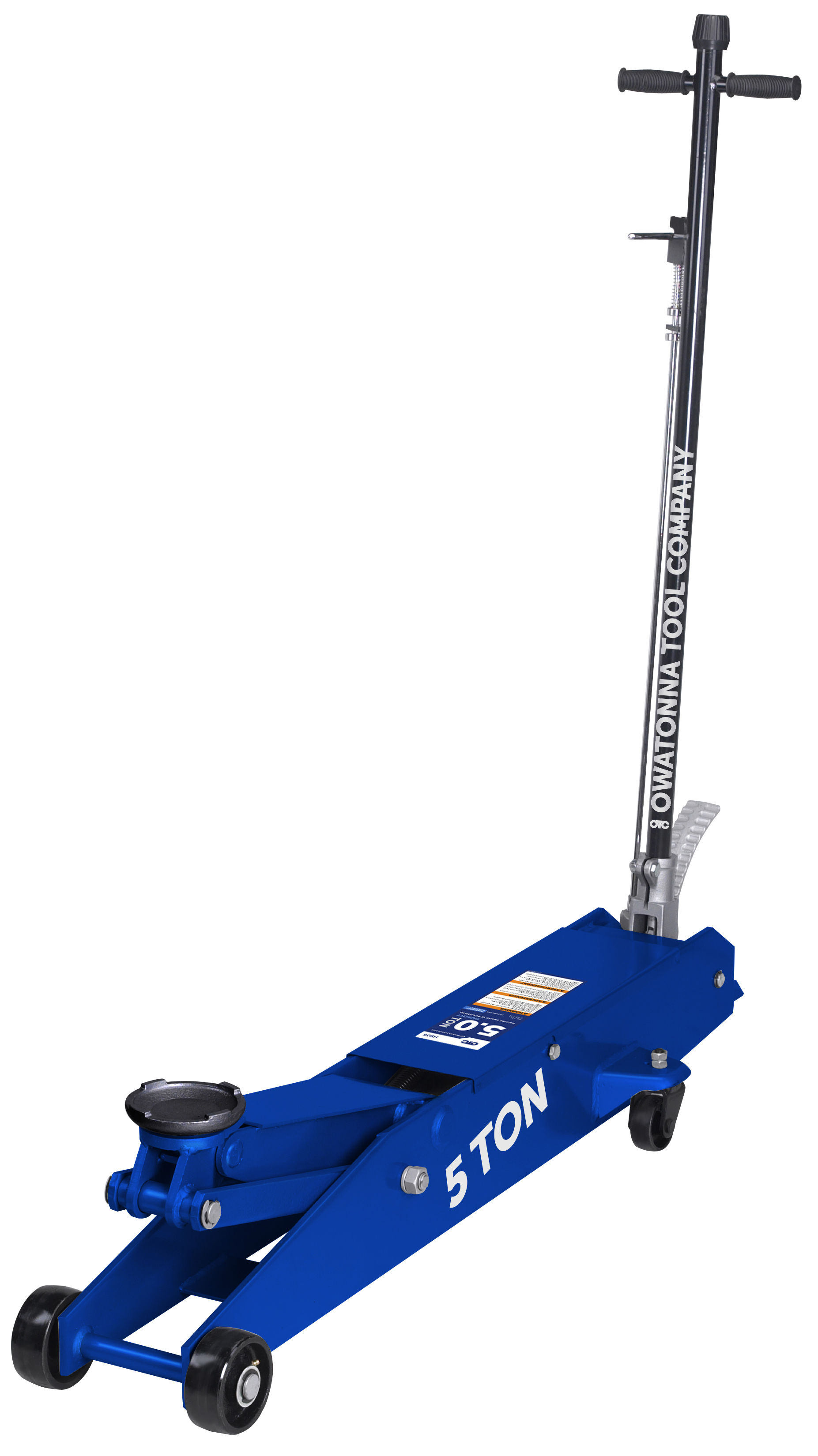

5 Ton Service Jack

An extremely safe and durable long chassis 5-ton floor jack. Built-in safety overload prevents using the jack beyond its rated capacity. A convenient foot pedal speeds the lifting operation. Handle lock and release controls are located on top of the 40" spring-loaded handle. Handle can be locked into any position from vertical to horizontal. Cycle tested design for a long life of professional duty.

Ideal size for lifting step vans, bucket trucks and smaller work vehicles.

Specifications:

  • 5-ton capacity
  • Lifting range: 6" to 22"
  • Reach: 47"
  • Saddle: 5-1/8" dia., round
  • Frame height: 7.9"
  • Handle length: 43" 3-position with lock and release controls
  • Floor space: 15" x 56"
  • Casters: 4; 4.4" fixed front (2), 2.8" mid-body swivel (2)

Meets all 5 ASME PASE-2019 safety standards for service jacks

Limited Lifetime Warranty

The Tabs

Overview
This product can expose you to chemicals including Titanium dioxide (airborne, unbound particles of respirable size), which is known to the State of California to cause cancer, and Titanium dioxide (airborne, unbound particles of respirable size), which is known to the State of California to cause birth defects or other reproductive harm. For more information for to www.P65Warnings.ca.gov.
SKU:
HDJ5
Categories:
Shop Equipment
Service Jacks
Includes:
OTC HDJ5 - 5 Ton Service Jack
1-Piece Handle
OTC Owner's Manual for Service Jacks
Supersedes P/N's:
1505B
Related/Accessory Products:
5 Ton Air / Hydraulic Service Jack
10 Ton Service Jack
10 Ton Air / Hydraulic Service Jack
Specs
Product Specs:
Capacity | 5-ton
Lifting range | 6" to 22"
Reach | 47"
Saddle | 5-1/8" dia., round
Frame height | 7.9"
Handle length | 43" 3-position with lock and release controls
Floor space| 15" x 56"
Casters | 4; 4.4" fixed front (2), 2.8" mid-body swivel (2)
Features:
Heavy duty hydraulic performance for garages, equipment dealers, commercial service and more
Welded hydraulic pump and cylinder construction provides increased strength and leak prevention
Chrome plated ram for additional rust resistance
Wiper seals protect hydraulic system from contaminants
Convenient foot pedal for no load lifts
Front wheels with roller bearings and ball bearing - mounted rear caster wheels provide stability and easy maneuverability
Overload and by-pass safety valves prevent use beyond the jacks rated capacity and over extension of the ram
Handle can be locked into one of three positions from horizontal to vertical and has independent release knob
Multi-lingual safety and capacity markings
OTC Owners manual for service jacks with training (operating) instructions
Product Dimensions:
56 × 14.75 × 7.75 in
Product Weight:
191 lb
Shipping Weight:
253 lb
